詳細介紹

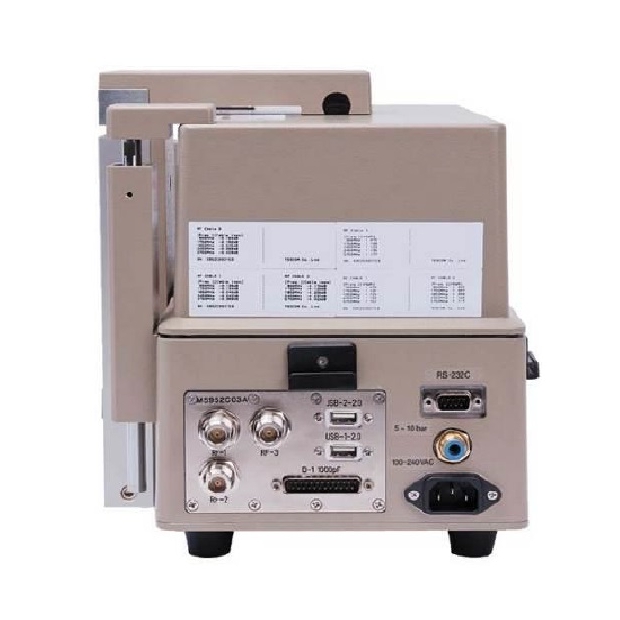

Datasheet Download : TESCOM - TC-5952C shield box

With wide frequency band supporting range from 100 to 6000 MHz, the TESCOM Shield Box can be applied to most of the current and future wireless communication technologies such as GSM, WCDMA, WiMAX, LTE, GNSS, Bluetooth, and Wi-Fi. Therefore, the Shield Box can be used for mobile device measurement using multi-frequency bands without limitations and is ideal for mobile device measurement by maintaining stable and effective shielding performance in all frequency bands.

Key features:
  • High RF Shielding
  • Pneumatic control of lid open-close and optional test fixture motions
  • EMI filters on all Data and DC lines
  • Easily customizable to meet various test needs
  • RS-232C Remote Control
  • Red and Green LED’s for Pass/Fail indication
  • Easily customizable to meet various test needs
  • Dual pressure control and Lid Down Sensor for safety
  • Narrower side front
  • Provide shield protective cover for safety.
  • The custom fixture option, F59421A/B allows auto connection, so it is efficient for mass production
