雷達模擬器 - Multifunction

雷達模擬器 - Multifunction

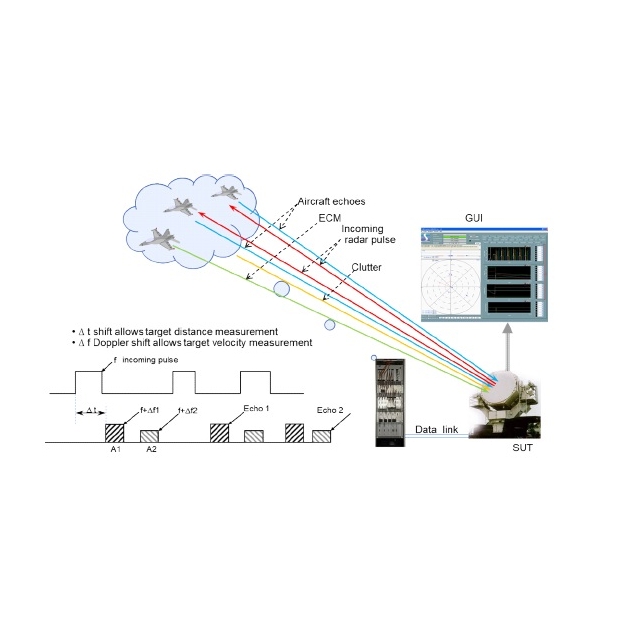

Synopsis - RTS (Radar Target Simulator) solutions are designed to evaluate or test radar systems in complex
and potentially hazardous situations。
詳細介紹
Datasheet Download : Synoposis - RADAR TARGET GENERATOR

Applications
• Radar Target Simulator
• Radar System Test & Evaluation
• Radar System Calibration
• ECM Simulators
• EPN / ECM / ECM Training
• ELINT Analysis / Playbackatasheet Downlo

Main features
• Frequency range (typical):
   ► 2 to 18 GHz
   ► 0.5 to 40 GHz
   ► Customized up to 96 GHz
• Up to 200 MHz/500 MHz/1 GHz Instantaneous Bandwidth
• Range: min 200 m / max 300 km
• 4 ns (60 cm) range resolution (10 ps as option)
• Doppler: ± 10 MHz max
• Doppler resolution: 1 Hz, Doppler accuracy: < 1 Hz
• RF output total dynamic range: > 90 dB
• 12/16 bit Digital RF Memory (DRFM)
• AWG capability (4 GBytes memory)
• Coherent moving target generator
• Complex target modelling, Swerling fluctuation models,Glint & Jet Engine Modulation (JEM) simulation
• Multi-target capability (up to 100 targets in the scenario)
• Clutter (ground, sea, volume) generation with different operational modes
• More..
